Surge Protection Device

Home / Surge Protection Device

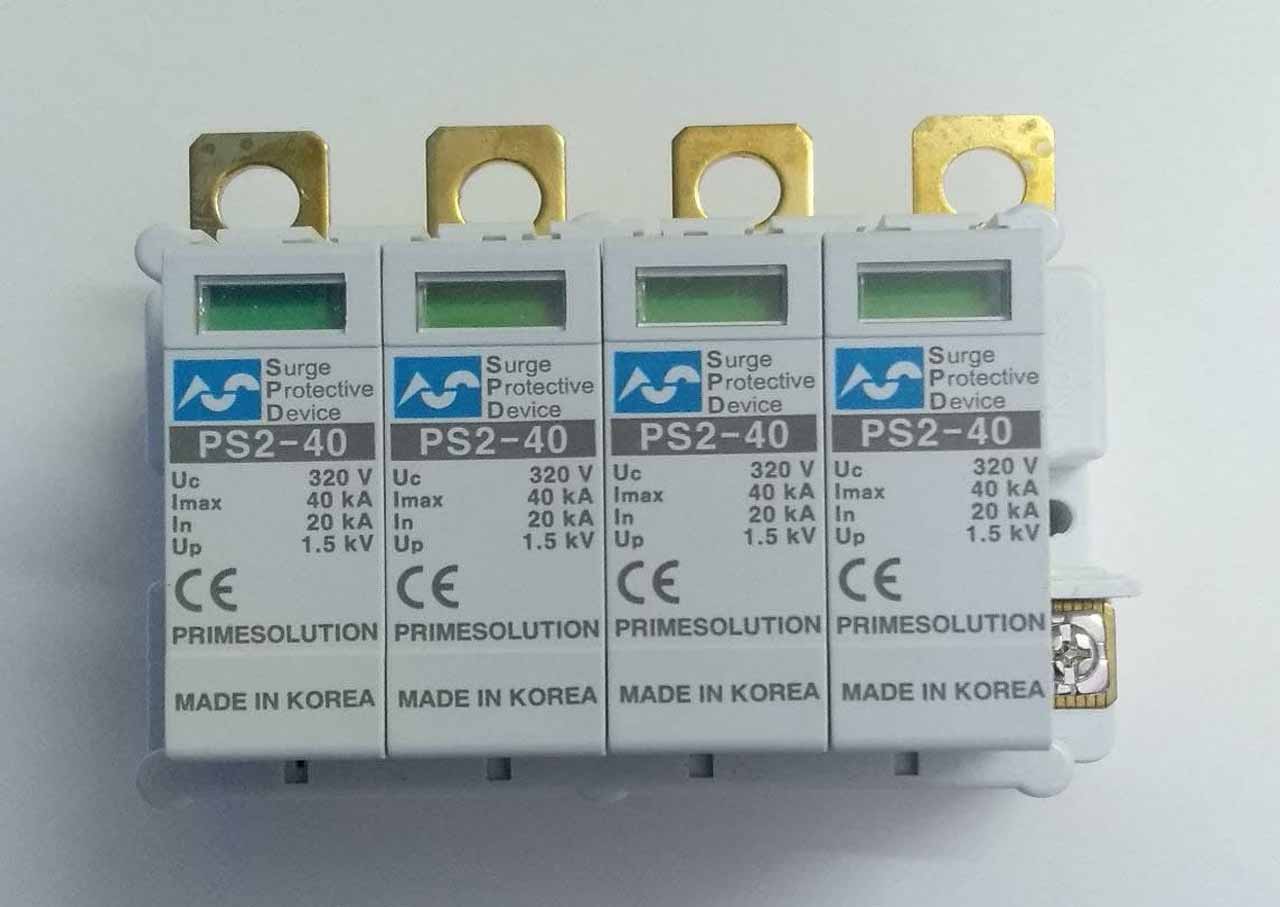

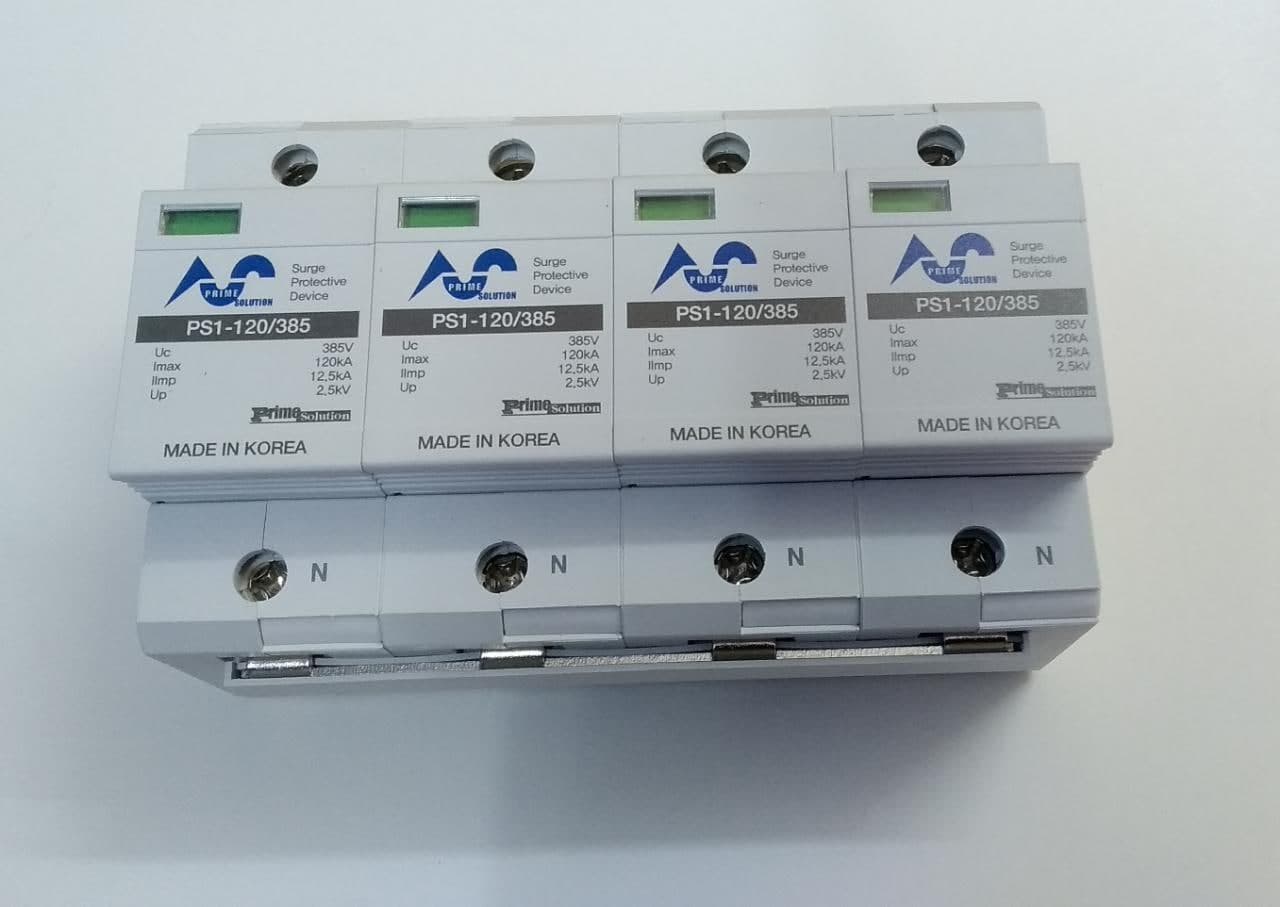

Mobile No. PS2-40/320 4P PS1-120/385 4P
Rated System Voltage 3-Phase 380/220V 4W+Gnd
Frequency 50/60 Hz
Class Class 2 Class 1
MCVO Uc 320 Vac 385 Vac
Impulse discharge current Ilimp(10/350μs) - 12.5kA/mode
Nomial discharge current In(8/20μs) 20kA/Mode -
Maximum discharge current Imax(8/20μs) 40kA/Mode 120kA/mode
Voltage Protetion Level Up 1.5 KV 2.5 KV
Degree of protection enclosure IP IP 20
Protection mode L-N/N -PE
Design Topology combination
Types of Earthing System TN/TT/IT
Diagnostics Green (Protected) / Red Replace
Option functions Remote contact
Connection & mounting method Prallel Connection Type / Wall Mounting
Wiring Size ≥ 4 mm² L, N :10 mm² PE: 16 mm²PE
Dimension s (WxHxD) 72*90*66.5 mm 144*90*68 mm
Product Weight 0.5 kg 1.0 kg
Internal Disconnector Thermal Runway Multi Fusing-Protection
External Disconnector TPS -2S20B TPS -1S125B
